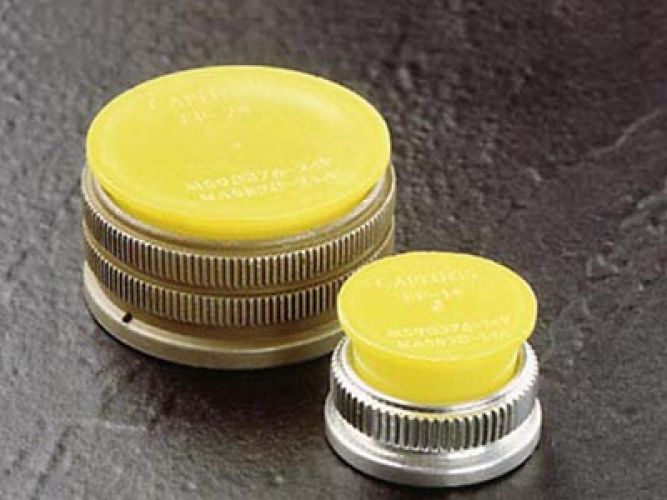

Plugs for Threaded Connectors

The EP series plugs for threaded connectors are designed for easy application and removal in areas not accessible. They can be installed to fit threaded or smooth cylindrical surfaces.

Material: Low- Density Polyethylene

Standard Colour: Yellow

Type: Protection & Finishing , Electronic Connectors, Packaging & Containers, Plugs, Tube Ends & Tubing

Material: LDPE, Polyethylene

Applications: Aerospace, Hydraulics

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

Message

I agree to Greentree's Terms and Conditions* Agreement to this option is required.

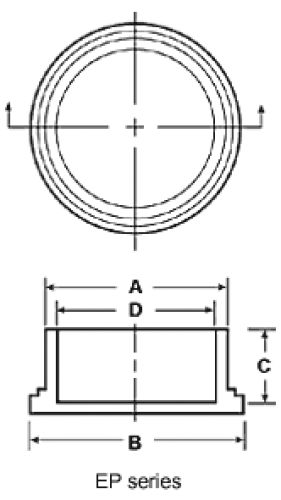

Part Number	Dim A (mm)	Dim B (mm)	Dim C (mm)	Dim D (mm)	To Plug Nominal Thread Size IN
EP-8	12.27	17.02	16.00	10.41	1/2-28
EP-10	15.11	19.05	16.00	13.46	5/8-24
EP-12	18.16	21.84	16.00	16.76	3/4-20
EP-14	21.46	26.16	16.00	20.07	7/8-20
EP-16	24.46	28.45	16.00	22.61	1-20
EP-18	27.64	31.75	16.00	26.16	1-1/8-18
EP-20	30.86	35.56	16.00	29.21	1-1/4-18
EP-22	34.04	38.10	16.00	32.26	1-3/8-18
EP-24	37.08	41.66	13.97	35.31	1-1/2-18
EP-25	40.13	45.97	16.00	39.12	1-5/8-18
EP-28	43.64	47.50	16.00	42.67	1-3/4-18
EP-32	50.04	54.10	16.00	48.01	2-18
EP-36	56.13	59.44	16.00	54.36	2-1/4-16
EP-40	62.23	66.04	16.00	60.45	2-1/2-16
EP-44	68.58	73.15	15.75	66.80	2-3/4 - 16
EP-48	74.93	79.25	16.00	73.15	3-16
