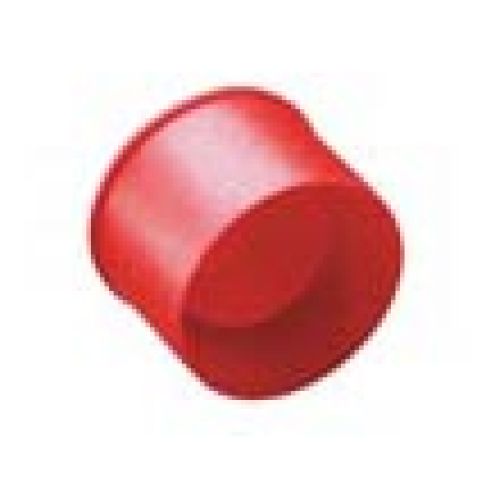

FTC - Flareless Tube and Nut Caps

Flareless Tube and Nut Caps

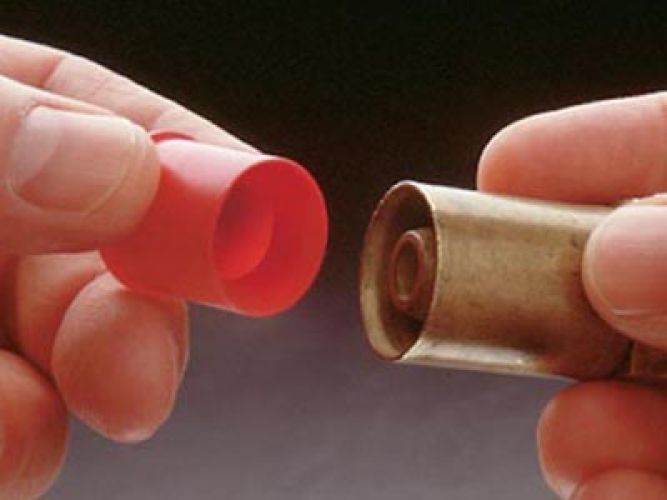

Featuring a “cap within a cap” design, the FTC series caps can be easily applied to flareless hydraulic tube and nut assemblies. As the FTC cap is pushed on the nut, the outer cap conforms to the hex shape of the nut while the inner cap covers the tube and sleeve inside the nut to hold the assembly firmly in place.

  • Unique ‘cap within a cap’ design

Material: Low-density polyethylene

Standard Colour: Red

Type: Fitting Protection, Protection & Finishing , Caps

Material: LDPE, Polyethylene

Applications: Thread and Flange Protection

Request a Call Back

For more information or to order samples we'd be pleased to call you back.

Let us know who we need to ask for when we call.

A phone number is required if we are going to call you back.

A valid email address is required.

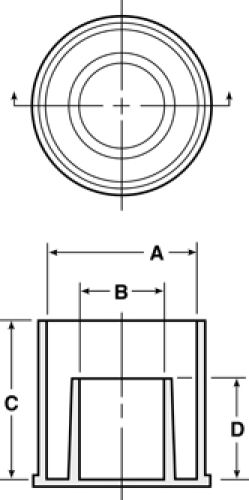

Part Number Dim A (mm) Dim B (mm) Dim C (mm) Dim D (mm) To Fit Tube Size
FTC-2 9.91 4.32 14.73 10.16 1/8
FTC-3 11.68 6.10 16.00 10.41 3/16
FTC-4 14.99 7.62 19.56 13.21 1/4
FTC-5 16.51 9.40 20.57 13.46 5/16
FTC-6 18.29 10.41 20.57 13.72 3/8
FTC-8 23.11 14.48 21.84 13.72 1/2
FTC-10 26.42 17.02 25.15 16.26 5/8
FTC-12 33.02 21.08 25.40 16.26 3/4
FTC-16 39.62 27.18 27.94 16.00 1
FTC-18 50.55 27.69 22.86 16.00 1-1/8
FTC-20 52.83 33.53 27.94 15.75 1 1/4
FTC-24 59.94 39.62 27.43 15.75 1 1/2
FTC-28 70.10 46.48 28.96 17.53 1 3/4
FTC-32 76.20 52.32 29.72 16.00 2
Convert to Imperial
